Может кто юзает такой или, вообще, какие будут мнения?
Китай, конечно. Осцил нужен для ремонта современных ТВ.

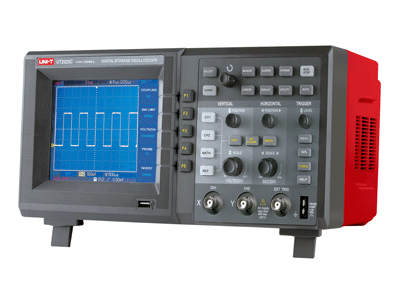

Вот данные на него: Тип Цифровые
Число каналов 2
Полоса пропускания 25 МГц
Rise Time ≤14 ns
Sample Range 500 MS/s ~ 1 GS/s (UT2025 series is 250MS/s)
Vertical Sensitivity 2 mV ~ 5 V/div
Record Length (Max) 1M
Sample Rate Real time 500 MS/s ~ 1 GS/s, Equivalent: 25 GS/s
Scan Time Base 20 ns ~ 50 s/div
Trigger Type Edge, Pulse, Video and Alternate
Automatic Waveform Measurements 28
Ports Standard: USB Device, USB Host (UT2025 series don't have this function); RS-232C, Optional: LAN
Mathematics Add, Subtract, Divide, Reverse and FFT
Applications College Education, R&D, Electronic product assemble line, Industrial Control etc.
Display 64k, Full colour LCD, 320 x 240
Power 100 - 240 VACRMS, 45 Hz - 440 Hz, CAT II
LCD Size Diagonal 145 mm (5.7 inches)
Product Color Red and Grey, White and Grey
Product Net Weight 2.5 kg (Excluding packaging)
Product Size 320 mm (wide) x 150 mm (high) x 130 mm (deep)
Standard Accessories Probe x 2 (1x, 10x switchable), Power Cord and English Manual
Standard Individual Packing
Gift Box
Standard Quantity Per Carton 2 pcs
Standard Carton Measurement 455 x 430 x 280 mm (0.055 CBM Per Export Carton)
Standard Carton Gross Weight 11 кг
Мануал есть здесь, только на английском:
http://www.rlocman.ru/op/tovar.html?di=50623&/UT2025C
